دتکتور شعله(Spectrex SharpEye™ 40/40D-I)

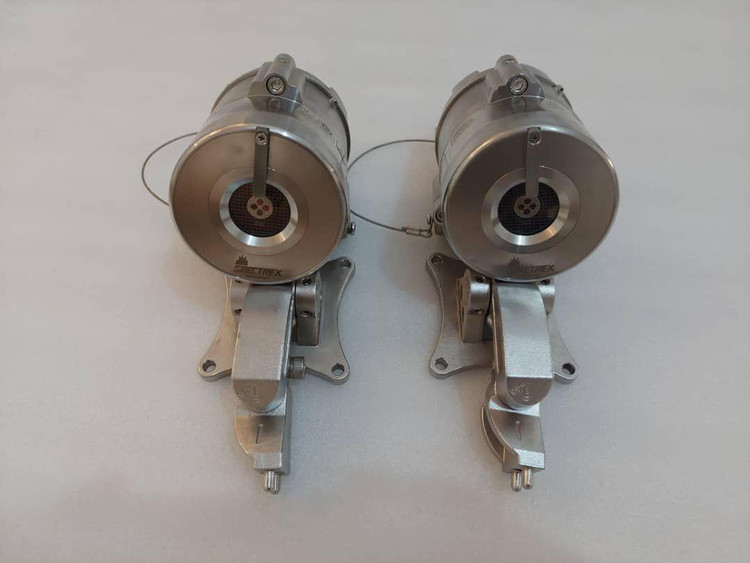

The SharpEye 40/40D-I Multi-Spectrum QuadSense Flame Detector is part of the leading, next
generation SharpEye 40/40 series.
Featuring superior longest detection range of hydrocarbon fires at up to 300 ft. (90 m),
exceptional ultra-fast detection in under 50 msec, and unparalleled reliability, the 40/40D-I is
based on proven Triple-IR (IR3) technology, ensuring highest sensitivity with proven immunity to
false alarms and absolutely keeping a SharpEye on your safety

Features and benefits
Multi-Spectrum QuadSense flame detector - integrating four infrared (IR) sensors to further improve differentiation of
flame sources from non-flame background radiation.
■ Superior detection range of hydrocarbon-based fuel and gas fires at up to 300 ft (90 m)
■ Extended detection range more than doubles detection coverage
■ Ultra fast detection, high speed response under 50 msec
■ Proven false alarm immunity
■ Unparalleled reliability - 150,000 hours MTBF
■ Best in class temperature range: -76 °F (-60 °C) to +185 °F (+85 °C)
■ Enhanced durability backed up by five-year warranty
■ Six sensitivity levels, adapting to any application
■ Smart field of view integrity test, allowing flawless operation
■ Innovative infrared built-in test - continuously validating the optical integrity and the electronic circuitry
■ Multiple output options for maximum compatibility with standard infrastructures
■ Plug and play - factory calibrated for immediate use in any fire detection system
■ Universal wiring option for fast ordering process
■ Two mode heated optics for impeccable performance in challenging environmental conditions
■ Worldwide and regionally certified for hazardous areas
■ Performance and reliability approved by recognizable certification bodies
■ SIL3 compatible
■ Internal log event recorder to analyze past events
